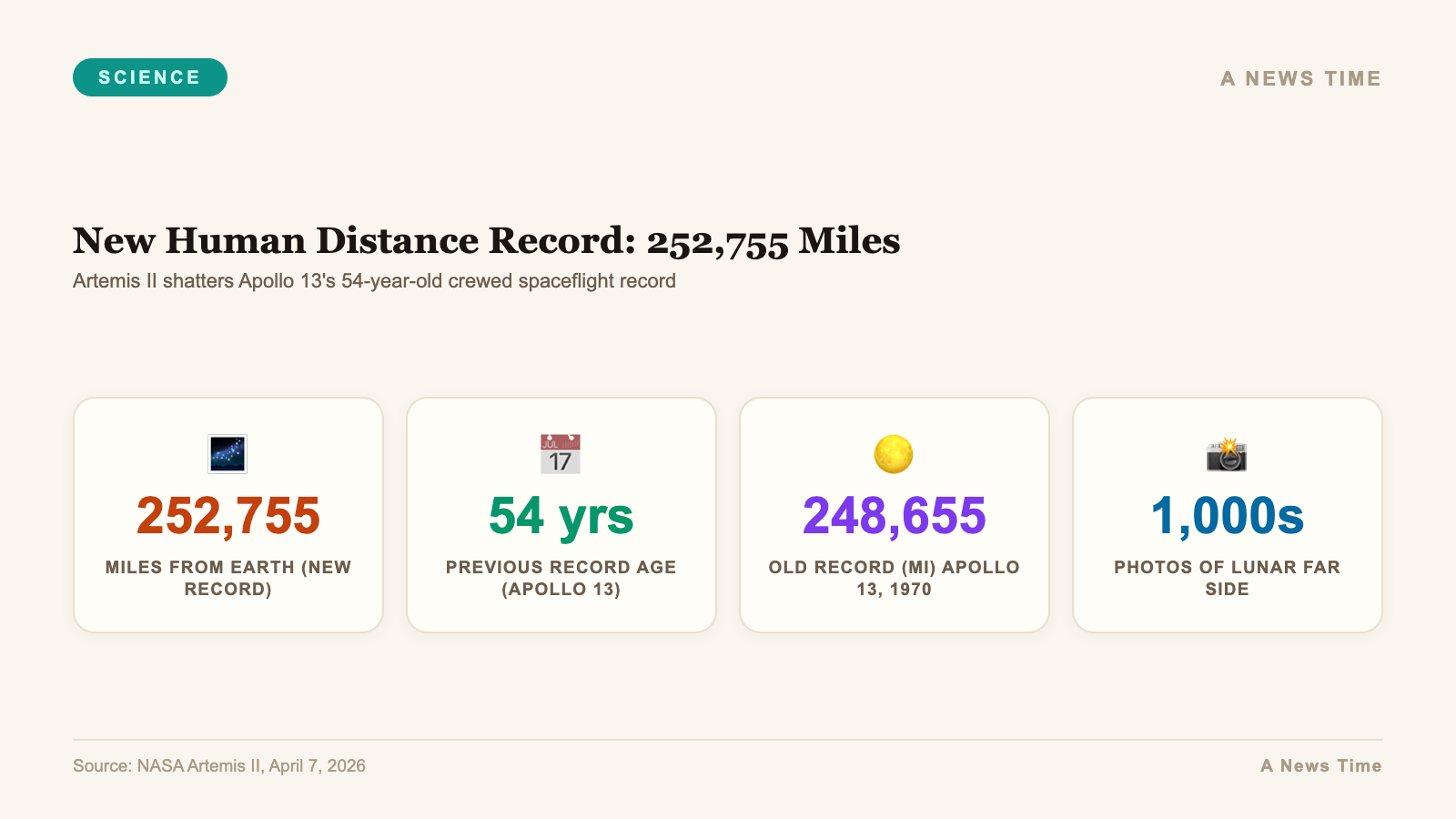

Artemis II Breaks Apollo 13 Distance Record at 252,755 Miles

The Celestial Figure-Eight: How the Trajectory Works

The term "free-return trajectory" appears in nearly every piece of Artemis II coverage, but its geometry deserves closer examination, because it explains both the distance record and the mission's unusual sightseeing opportunities.

Imagine placing a finger on a sheet of paper at the position of Earth. Draw a loop around the Moon that curves outward on the far side, then arcs back toward Earth. The shape looks like an elongated figure eight. In the actual mission, the crew fires the European Service Module engine once after leaving Earth orbit, a burn called translunar injection, and then gravity does the rest. Earth's gravity accelerates the spacecraft outward; the Moon's gravity bends the trajectory into an arc around the lunar far side; Earth's gravity then pulls the spacecraft back home. No additional engine burns are required for the return. The architecture is called "free-return" because the crew receives a homeward path for free, powered entirely by gravity.

The outbound leg of this arc takes Orion past the Moon's near side at closest approach (roughly 4,070 miles from the lunar surface), then around the far side and onward to peak distance on the far side of the lunar disk. The crew reached that peak distance on April 7, roughly 30 hours after their closest approach on April 6. From the far side of the Moon, Earth appears as a small blue marble hanging in black space, a perspective only 24 humans, the Apollo crews, had ever witnessed, and none had seen since December 1972.

The reason Artemis II reaches farther than most Apollo missions is that most Apollo flights did not use a free-return trajectory. After Apollo 13's emergency demonstrated the safety value of a passive return path, later missions still used powered lunar orbit insertion to achieve tighter orbits for surface landings, which capped their outbound distance. Artemis II, as a test flight without a landing objective, uses the free-return design as its primary architecture, which naturally carries the crew to a greater peak distance than powered-orbit missions.

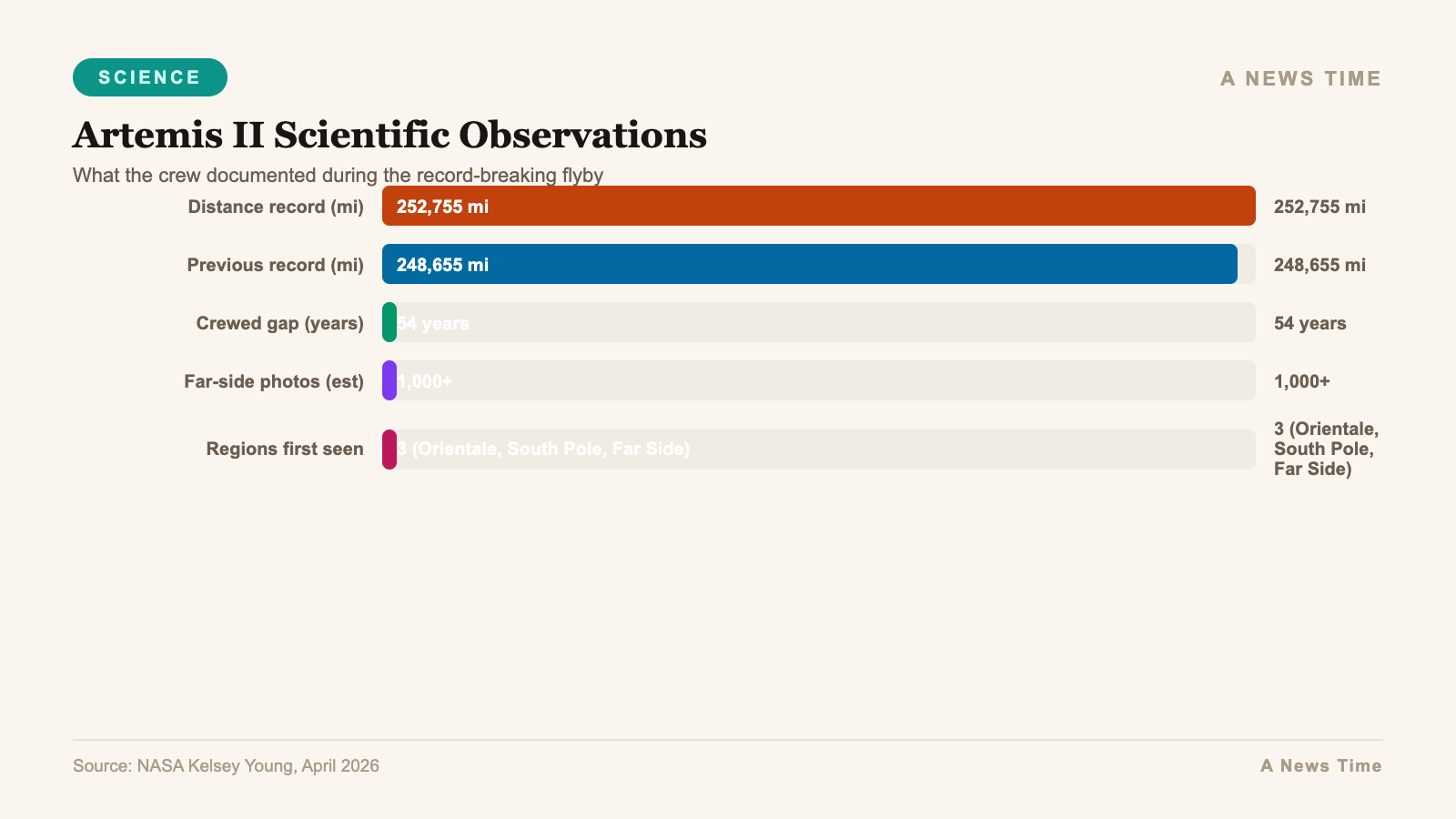

What the Crew Photographed: Sightseeing With Scientific Purpose

The photography objectives during the flyby are not incidental. They are structured around the specific needs of the Artemis program's surface operations planning. Three targets received particular attention during the approach and outbound arc.

The Orientale Basin is one of the most structurally striking features on the Moon: a roughly 600-mile-wide multi-ring impact basin centered on the lunar far side. Its concentric ring structure, formed when a massive impactor excavated the lunar interior billions of years ago, is visible in unprecedented detail from the Artemis II approach angle. The basin is not a landing target for Artemis III, but the geological context it provides for understanding the lunar far side's crustal structure contributes to the broader science mission for the program.

The Apollo 12 and Apollo 14 landing sites in the Ocean of Storms received attention during the near-side approach. Photographing these sites from a crewed spacecraft provides scale reference images that ground teams can use to calibrate the resolution of future surface photography. The NASA Artemis program intends these calibration images to improve the precision of geological mapping for Artemis III landing site selection.

The south polar region received the most sustained photographic attention. Artemis III is planned to land near the lunar south pole, where permanently shadowed crater interiors are believed to contain water ice deposits based on orbital data from instruments including LRO's LOLA and the LCROSS impact experiment. High-resolution imagery from human-crewed perspective at this distance provides angular views into crater interiors that are geometrically impossible from equatorial orbital passes. The crew's photographs may reveal terrain details at candidate landing sites not visible in prior orbital data.

A Total Solar Eclipse Seen From Behind the Moon

As Orion completed its closest approach and began arcing around the far side of the Moon, the crew witnessed something no human had ever directly observed: a total solar eclipse as seen from beyond the Moon.

From the crew's vantage, Earth moved directly between the Sun and the spacecraft as Orion passed through the Moon's geometric shadow. The Sun, which appears roughly half a degree wide from Earth's distance, shrank behind Earth's disk, replaced by a thin ring of atmospheric scattering: Earth's atmosphere bending sunlight around the planetary edge in a phenomenon planetary scientists call an atmospheric limb glow. The crew, in effect, watched Earth eclipse the Sun entirely, a complete reversal of the total solar eclipses observable from Earth's surface.

The eclipse lasted approximately 25 minutes during the far-side pass, during which Orion's solar panels drew no power and the spacecraft operated on battery reserves. Mission controllers had planned for this eclipse window in the power budget: the European Service Module carries enough battery capacity for a considerably longer eclipse than the mission geometry required. The eclipse also produced a planned communications blackout as Orion passed behind the Moon's bulk, an anticipated gap in the data stream that lasted roughly the same duration.

"This is an opportunity for us to remember where we are, who we are. Flying during Holy Week, seeing Earth eclipsed by the Sun from behind the Moon, there's a perspective shift that's hard to put into words."

Victor Glover, Artemis II Pilot, in-flight communication to Johnson Space Center

Glover, who made this observation as the mission coincided with Christianity's Holy Week, was reflecting on the peculiar temporal alignment of the mission. The observation carries weight beyond any single tradition: the experience of watching one's home planet reduce to a small, glowing outline against the darkness of space has been reported by every astronaut who has seen it. Glover's description adds one more account to that record.

Apollo 13: The Record That Held for 54 Years

The Apollo 13 distance record's longevity is worth understanding, because it was never supposed to exist. The mission's planned trajectory would have carried the crew to lunar orbit at a peak distance comparable to other Apollo flights, roughly 240,000 miles. The record was set because the oxygen tank explosion on April 13, 1970 forced mission controllers to abandon the planned powered orbit insertion and use the lunar Module engine to shape the crew's trajectory into a free-return path that would bring them home without requiring a functional service module engine.

That decision, executed under conditions of severe resource constraint and genuine danger to the crew, produced a trajectory geometry that carried Lovell, Swigert, and Haise farther from Earth than any of the planned missions before or after. The record was a byproduct of an emergency. It took 54 years, a new rocket, and a purpose-built spacecraft to surpass it under deliberate conditions.

The parallel between Apollo 13's emergency free-return and Artemis II's planned free-return is not incidental. The free-return architecture chosen for Artemis II is directly descended from the lessons of Apollo 13: NASA selected it for this test mission precisely because it provides a passive homeward path without depending on successful engine firings. The record fell to the same design philosophy that created it, adapted from emergency contingency into routine mission architecture.

As covered in our earlier reporting on the Artemis II lunar flyby and its historic firsts, Commander Wiseman's crew reached the point of closest lunar approach on April 6, passing within approximately 4,070 miles of the surface. The distance record came the following day as the spacecraft continued to the apex of its outbound arc. The two milestones are separated by roughly 30 hours of flight time.

What the Mission Timeline Looks Like

Splashdown is targeted for April 11, 2026 in the Pacific Ocean. The reentry event is among the most technically consequential moments of the mission: Orion will enter Earth's upper atmosphere at approximately 25,000 miles per hour, generating thermal loads the heat shield has faced only once before, in an uncrewed configuration during Artemis I in November 2022. Post-recovery inspection of the heat shield will provide engineering data unavailable from Artemis I's robotic telemetry alone.

The Road to Artemis III and What Comes After

The distance record and the photographs collected during Artemis II's flyby are not ends in themselves. They are inputs to a program whose next milestone is considerably more technically complex: landing two astronauts on the lunar south pole in Artemis III, currently planned for 2027.

Artemis III will use a human-rated variant of SpaceX's Starship as the lunar lander, requiring the crew to transfer from the Orion spacecraft to the Starship in lunar orbit, descend to the surface, conduct surface operations, ascend back to orbit, and rendezvous with Orion for the return trip. None of those elements has ever been performed in the lunar environment. The reconnaissance data from Artemis II's photography campaign directly informs where the landing attempt will occur, and the engineering validation data from this mission reduces the uncertainty around whether the Orion spacecraft and SLS can reliably deliver a crew to lunar orbit.

Looking further ahead, Artemis IV in 2028 is planned as the first mission to dock with the Lunar Gateway, a small space station planned for lunar orbit that would serve as a staging platform for future surface operations. The nuclear propulsion systems in development for deep space transit, including NASA's SR-1 Freedom program, represent a path to reducing transit times for eventual Mars missions that depend on the human deep-space operational experience Artemis is building, one flight at a time.

The NASA press release on the Artemis II flyby milestone notes that the mission is proceeding without publicly announced anomalies. Several open questions will be answered only after splashdown and data analysis: heat shield condition, crew radiation dosimetry, cognitive performance metrics across the multi-day transit. What the mission has confirmed already, before any of that data is formally analyzed, is that four humans successfully navigated from Earth to the Moon's vicinity and set a new record for how far any person has traveled from the planet on which our species evolved. The question now is how far the next crew will go.
